200A Plasma Cutting Power Source 74X42X91 CM For CNC Cutting Machine

Name: 200A Plasma Cutting Power Source 74X42X91 CM For CNC Cutting Machine
Brand: CUT200A
Price: 3 USD

China 200A Plasma Cutting Power Source 74X42X91 CM For CNC Cutting Machine wholesale

Place of Origin : Jiangsu, China

Brand Name : CUT200A

Certification : CCC

Supply Ability : 200 Set/Sets per Month

Packaging Details : Hard plywood case

MOQ : 1 - 4 Sets

Price : $3,000.00

Warranty : 1 year

After-sales Service Provided : Free spare parts, Online support, Video technical support, Engineers available to service machinery overseas

Condition : New

Dimension(L*W*H) : 74 x 42 x 91 CM

Weight : 90kg

Rated Power : 200w

Voltage : 380V

Rated Input Voltage : 380V

Max. Output Voltage : 380V

Open Circuit Voltage (OCV) : 3*380 (HZ) ± 10%

Max. Output Current : 40KVA

Rated Duty Cycle @40°C : 100%

Application : CNC Plasma cutting

Brand : YAHONG

Quality Cutting Thickness : 25MM

Cutting Torch Cooling Mode : Water Cooling

Color : customize

Plasma Gas : air

Current Adj Range : 35-200A

Cutting material : METAL

Size : 830mm*540mm*1260mm

Port : Shanghai Port

Contact Now

200A Plasma Cutting Power Source 74X42X91 CM For CNC Cutting Machine

Plasma Power Source For CNC Cutter

1.Main Technical Performance Indexes of products

Input voltage	3*380(50Hz)±10%
Input power	45KVA
Cutting power current	30-200A
Temporary load rate	200A/100%
Cutting thickness	according to the material u cut
Perforation thickness	25mm
Quality cutting thickness	45mm
Max cutting thickness	55mm
Cutting gas	air
Gas flow	150L/min
Gas pressure	0.5MPa
Cooling method	Water cooling
Power source weight	90Kg
Outline dimension	L69W37H81cm

2.Unique cutting functions:

1.Adopt international advanced full bridge soft switching technology

2.Plasma power supply current is 30A - 200A stepless adjustable

3.Good cut surface vertical degree, carbon steel cutting can be within 3 degree

4.Independent research and development of the cutting torch, strong ability to penetrate, with good vertical degree

5.Built-in overcurrent, overvoltage, air pressure and hydraulic pressure multiple protection

6.Suitable for CNC cutting machine and robot supporting use

7.100% temporary load rate, can work long hours

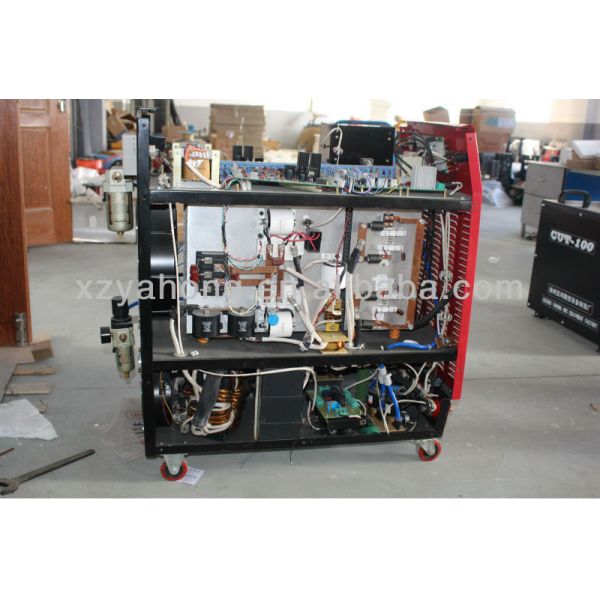

Photos:

200A Plasma Cutting Power Source 74X42X91 CM For CNC Cutting Machine

Exhition:

200A Plasma Cutting Power Source 74X42X91 CM For CNC Cutting Machine

...
